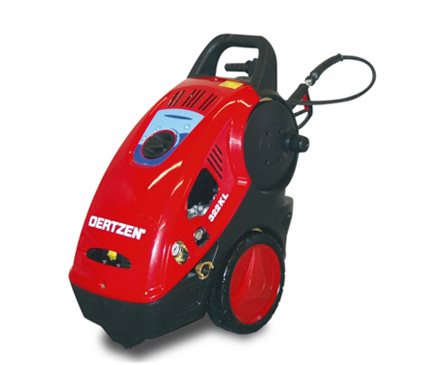

OERTZEN High Pressure Cleaner 322 KL


  • Cold water high pressure cleaner with 3 cylinder inline plunger pump
    (brass pump head, ceramic plungers) - flanged to electric motor

  • motor/pump rpm 1420 1/min, slowly running machine

  • start/stop device (time delay)

  • pump system pressureless by closing spray pistol (stand by operation)

  • integrated detergent tank 15 l

  • integrated Hose reel with 15 m hp hose

  • vario lance with point/rotatry point jet

  • hp cleaner with 2 wheels and PE hood







  Flow rate max. 960 l/h
  Unloading pressure 210 bar
  Working pressure max. 190 bar
  Standard voltage 380V/3~50 Hz
  Pump speed 1420 1/min
  Power source electric motor
  Connecting power 5.1 kW
  Dimensions (LxWxH) 750x390x860 mm.
  Weight 34 kg.
